Product Details:
Payment & Shipping Terms:
|
| Technics: | Woven | Product Type: | Carbon Fiber Fabric |
|---|---|---|---|
| Width: | 47/48" | Pattern: | SOLIDS |
| Supply Type: | Make-to-Order | Material: | 100% Carbon Fiber |
| Style: | TWILL, Plain, Other | Feature: | Abrasion-Resistant, Anti Pill, Blackout, Double Faced, Oilproof, Anti-UV |
| Use: | Bag, Shoes, Home Decor, Car, Outdoor-Metallurgy, Hospital, Toy | Weight: | 80gsm, 148g |
| Thickness: | Very Lightweight | Applicable To The Crowd: | Women, Men, GIRLS, BOYS |
| Material: | Carbon Fiber | Application: | Multirotor |
| Color: | Black | Port: | Shenzhen/hongkong |
| Highlight: | 4 inch carbon fiber tube,5 inch carbon fiber tube,6 inch carbon fiber tube |
||

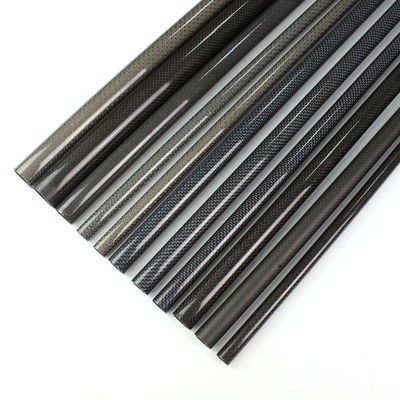

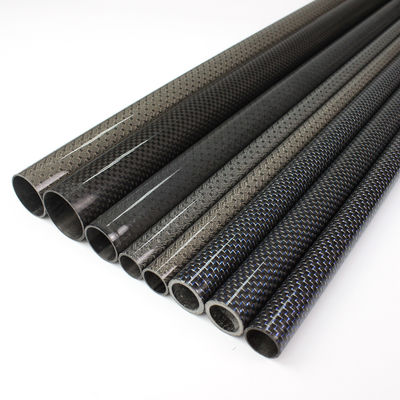

carbon boom carbon fiber tail boom carbon arm( with glossy or matte finish for rc model)
Item Name: carbon fiber boom, carbon fiber tubes ,carbon fiber telescopic tube pipes poles shaft(roll wrapped) and be partable and tapered .
Application for handle tools, rc copter,window cleaning poles, gardening tooling,arrow shaft, telescopic poles, tool rod
Features:
Specification:
we can supply custom dimensions (ID*OD.*LENGTH),thickness,strength according to what customer's need.
Please refer to the following specifications:
| FRT CARBON--Round Roll Wrapped Tube Specification Table | |||
| Item NO: | O.D.*I.D.*L(MM) | Wall Thickness(MM) | Material |
| FRT-RWT-001 | 6*4*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-002 | 7*5*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-003 | 8*6*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-004 | 9*7.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-005 | 10*8*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-006 | 11*9*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-007 | 12*10*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-008 | 13*11*1300 | 1mm | Pure Carbon Fiber |
| FRT-RWT-009 | 14*12*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-010 | 15*13*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-011 | 16*15*1000 | 0.5mm | Pure Carbon Fiber |
| FRT-RWT-012 | 16*14*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-013 | 18*16*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-014 | 20*18*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-015 | 22*20*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-016 | 25*23*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-017 | 25*19*1000 | 3mm | Pure Carbon Fiber |
| FRT-RWT-018 | 22*19.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-019 | 25*22*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-020 | 30*28*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-021 | 35*32*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-022 | 40*38*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-023 | 43*41*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-024 | 46*44*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-025 | 53*50*1000 | 1.5mm | Pure Carbon Fiber |
| please contact us for more specifications | |||

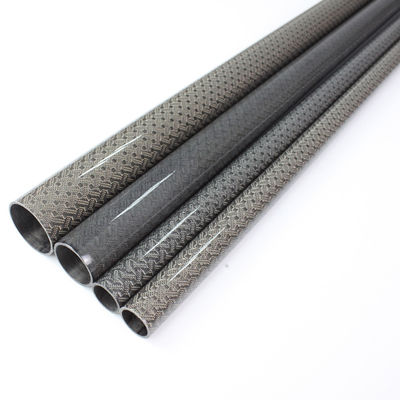

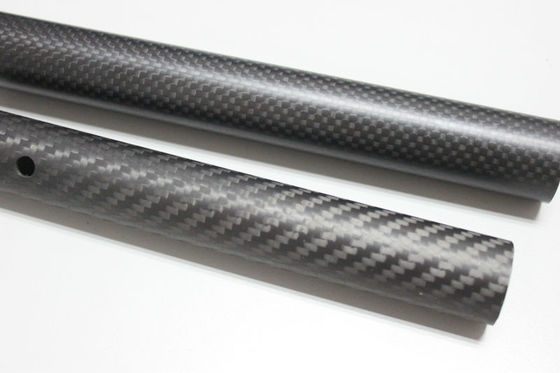

woven carbon fiber tube ---Glossy and matte:
Performance:
|
|
Applications:
|
|
